BrowserGym: Technical deep dive into web agent automation

Image generated using Meta AI

The field of web automation faces significant challenges in standardizing agent development and evaluation. BrowserGym, a Gym environment for web automation tasks by ServiceNow, addresses these challenges by providing a unified framework that standardizes the development, testing, and evaluation of web agents. In addition, they also design AgentLab, a complementary framework to help create, test, and analyze AI agents. When combined with BrowserGym, it allows for easy integration of new challenges while ensuring fair evaluation and holistic experiment management. This technical overview examines the architecture, implementation, and experimental results that demonstrate BrowserGym's impact on web automation research.

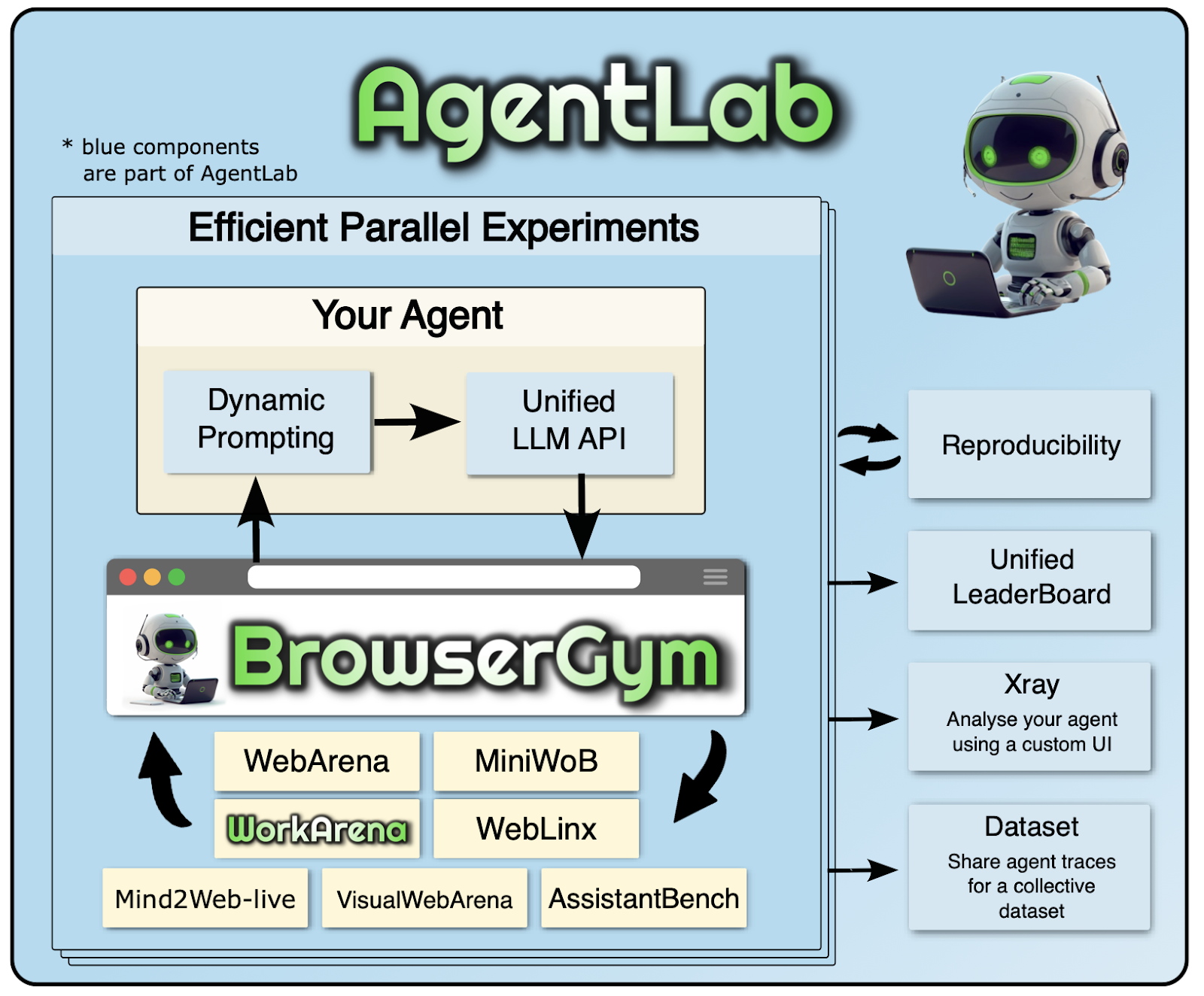

Figure 1- Overview of BrowserGym. Source: https://arxiv.org/pdf/2412.05467 — **Figure 1**- Overview of BrowserGym. Source: https://arxiv.org/pdf/2412.05467

Core architecture

BrowserGym implements a Partially Observable Markov Decision Process (POMDP) architecture where the environment encompasses both chat and browser interfaces. The system processes observations, including page state, chat history, and visual information, through a standardized API built on the Chromium browser backend and the Playwright library for automation. The implementation leverages the Chrome Developer Protocol (CDP) for Document Object Model (DOM) and AXTree extraction (Accessibility Tree), representing the elements of the web environment.

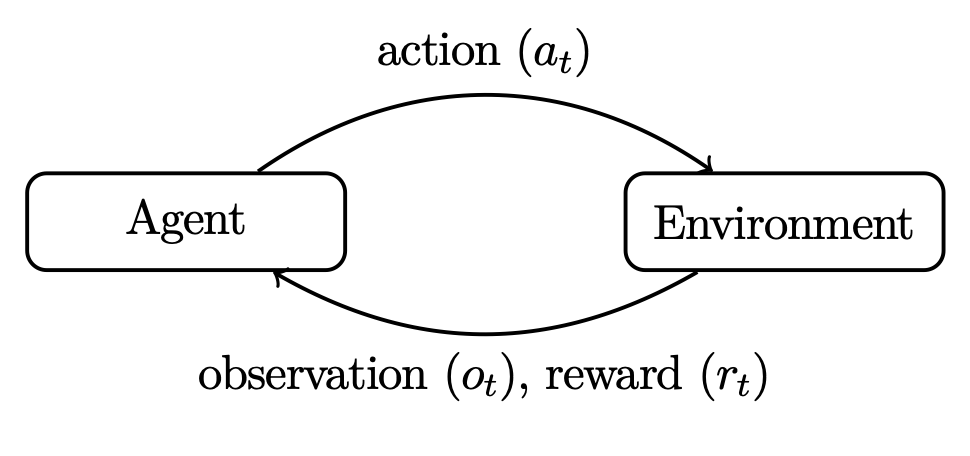

Figure 2- A Partially Observable MDP. Source: https://arxiv.org/pdf/2412.05467 — **Figure 2**- A Partially Observable MDP. Source: https://arxiv.org/pdf/2412.05467

BrowserGym enhances web elements by adding a unique BrowserGym ID (bid) to both the DOM and AXTree, ensuring precise element interaction for automation. It captures visual data using bounding box coordinates and visibility ratios. Page descriptions include the raw DOM, Accessibility Tree data, and screenshots, providing a detailed view of the web environment. This layered approach helps agents understand and interact with web interfaces effectively.

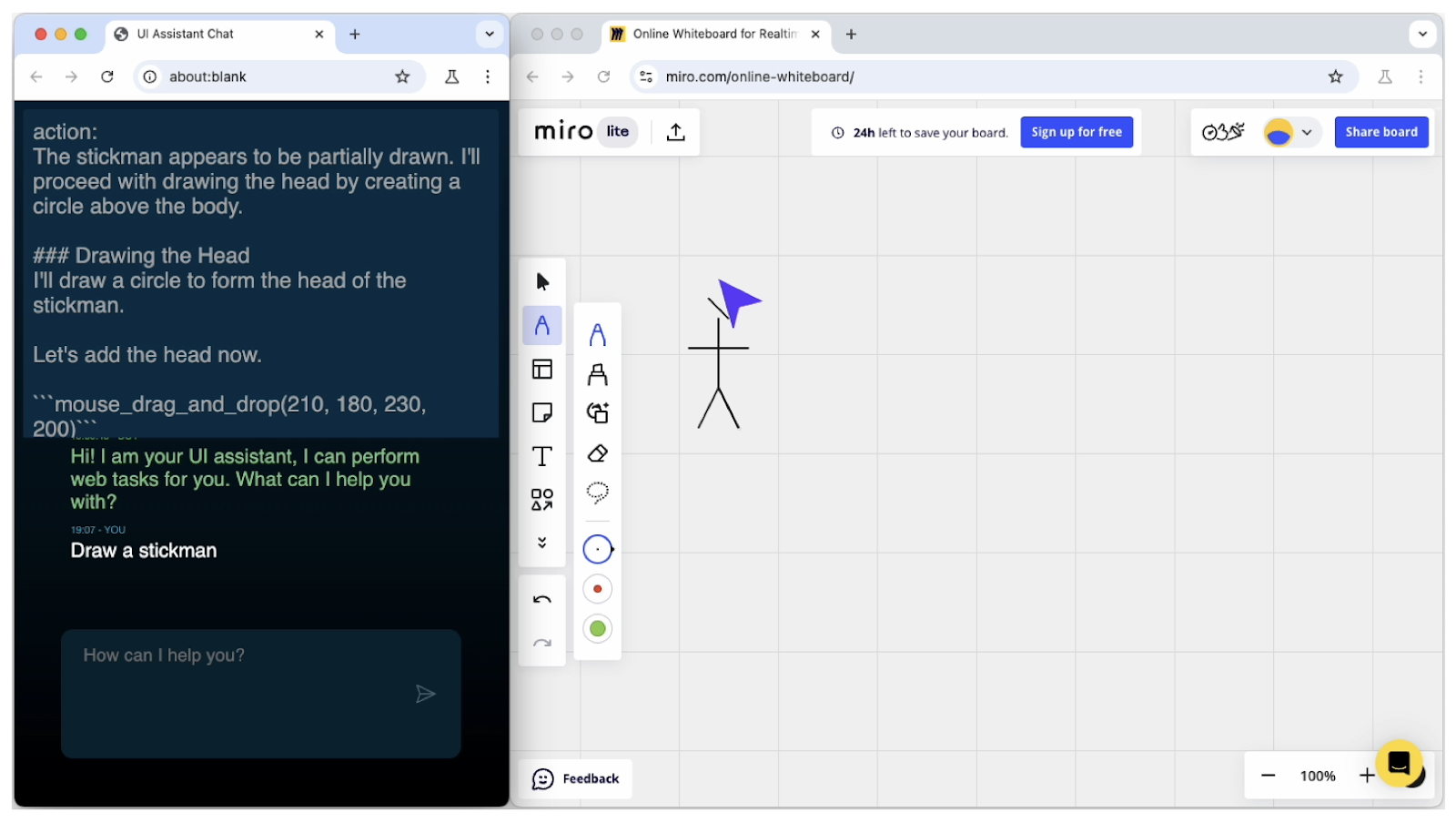

Figure 3- A rendered BrowserGym environment. Source: https://arxiv.org/pdf/2412.05467 — **Figure 3**- A rendered BrowserGym environment. Source: https://arxiv.org/pdf/2412.05467

AgentLab framework

AgentLab extends BrowserGym's capabilities through sophisticated parallelization and analysis tools. The system implements multiprocess execution using ray or joblib backends, supporting 20-100 parallel tasks depending on hardware capabilities. Task dependency management handles complex benchmarks while maintaining proper instance reset protocols between evaluations. This architecture carefully balances API rate limits for commercial LLMs while maximizing throughput.

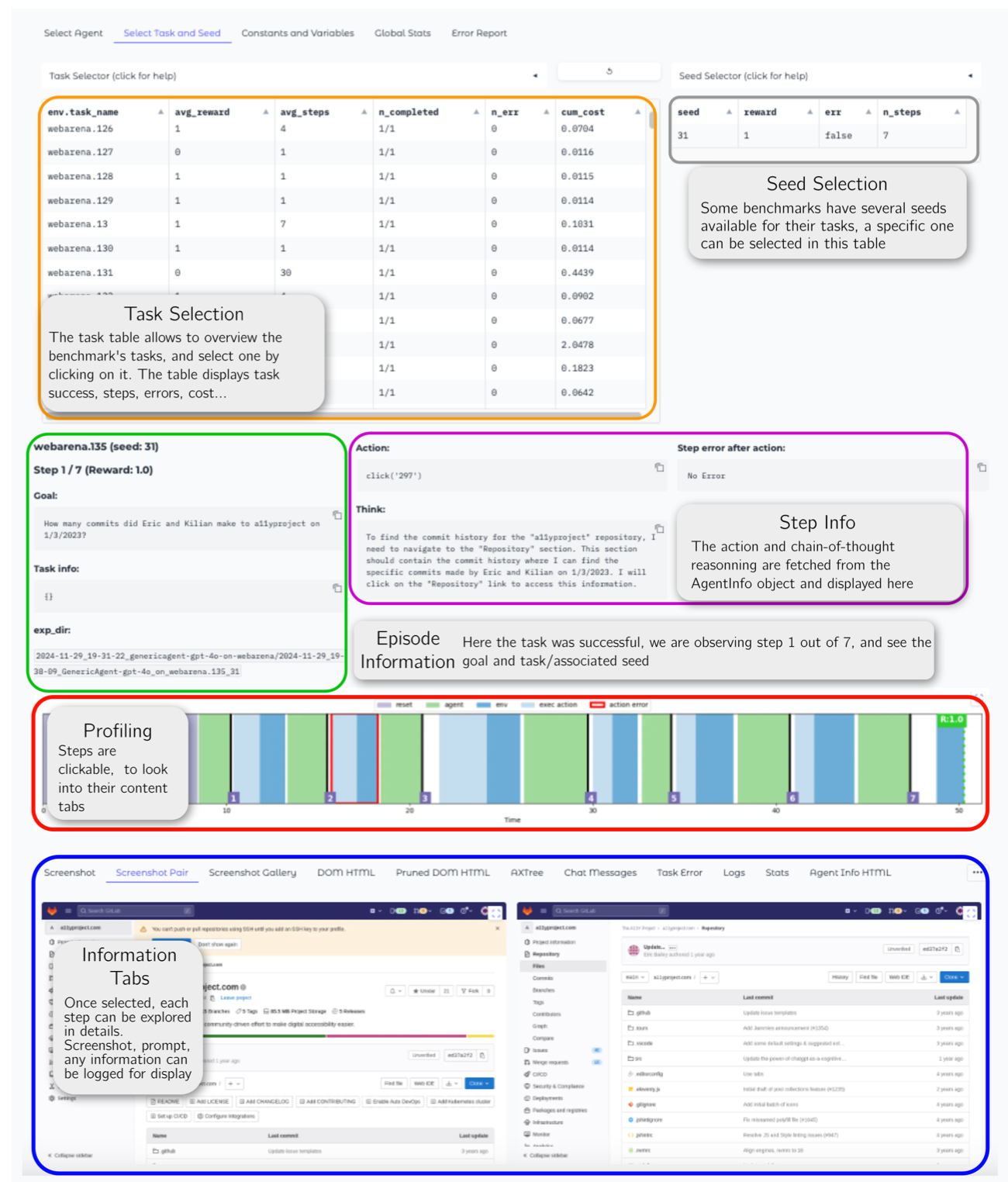

Figure 4- Visual Rendering of AgentLab’s XRay interface. Source: https://arxiv.org/pdf/2412.05467 — **Figure 4**- Visual Rendering of AgentLab’s XRay interface. Source: https://arxiv.org/pdf/2412.05467

The framework's AgentXRay component provides deep insight into agent behavior through a Gradio-based interface. This tool enables step-by-step analysis of decision-making processes, offering comprehensive trace logging and visualization of observation components. The system's dynamic prompting mechanism handles varying context lengths through configurable observation spaces and recursive prompt shrinking strategies, ensuring efficient token utilization across different LLM capabilities.

Reproducibility engineering

BrowserGym addresses reproducibility challenges through a comprehensive framework that manages software versions, API models, and website states. The system tracks package versions and dependencies while documenting checkpoint information for commercial LLMs. Website state handling accounts for region-specific content and language variations, while stochastic control mechanisms manage temperature settings and seed values for consistent results.

The implementation features standardized observation and action spaces with benchmark-specific defaults, ensuring consistent evaluation environments. Version control extends beyond code to track OS versions, commit hashes, and timestamps, while automated journal updates and visual diff analysis tools enable thorough result verification.

Experimental results

Recent experiments with BrowserGym have revealed significant capabilities in modern language models. Claude 3.5 Sonnet achieved unprecedented success with a 39.1% success rate on WorkArena L2, demonstrating superior performance across multiple benchmarks. This success is attributed to specialized computer use capabilities and advanced reasoning mechanisms.

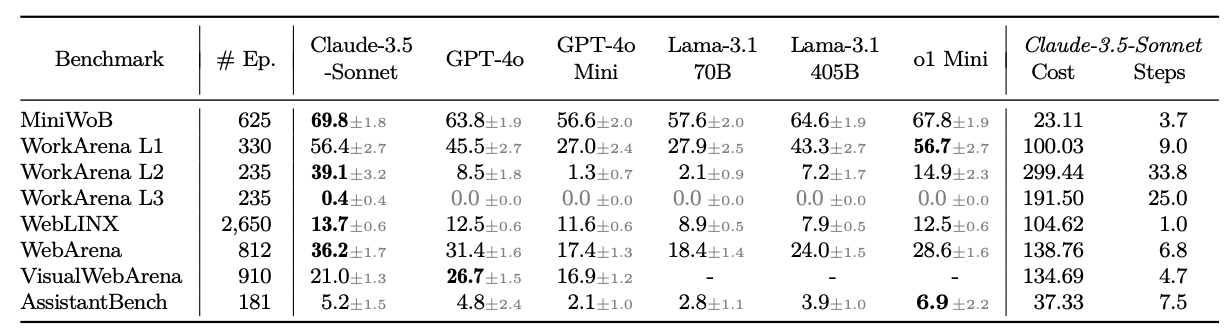

Table 1- Results on full round of experimentation on the benchmark ecosystem. #Ep column indicates number of evaluation epsiodes / benchmark. Source: https://arxiv.org/pdf/2412.05467 — **Table 1**- Results of a full round of experimentation on the benchmark ecosystem. #Ep column indicates a number of evaluation episodes/benchmarks. Source: https://arxiv.org/pdf/2412.05467

GPT-4o showed marked improvement, increasing from 23.5% to 31.4% on WebArena and from 3.8% to 8.5% on WorkArena L2. These gains indicate enhanced reasoning capabilities in the updated model. The open-source Llama-3.1 models demonstrated competitive performance, with the 70B variant matching GPT-4o Mini and the 405B version exceeding it in several benchmarks. This result suggests that open-source models are quickly catching up, which could shift the landscape of AI development.

Technical limitations

Current technical constraints center around browser interaction synchronization, multi-agent operations, and robot detection mechanisms. The synchronous loop architecture can create performance bottlenecks during rapid action sequences, while shared resource management complicates multi-agent scenarios. Robot detection systems, including CAPTCHA and IP rate limiting, pose significant challenges for open-web tasks.

Infrastructure challenges extend to processing requirements and API dependencies. Parallel execution demands careful resource allocation and memory management, while API rate limits and service reliability affect system performance. These limitations highlight areas requiring focused development effort.

Future development

Going forward, BrowserGym aims to improve safety, streamline real-time processing, and make models more efficient. Safety developments focus on robust security protocols and privacy protection mechanisms, while real-time processing improvements target latency reduction and decision pipeline optimization.

Model optimization efforts aim to reduce computational requirements while maintaining performance, particularly in visual processing capabilities. The framework's comprehensive data collection system enables continuous improvement through task-specific optimization and behavior refinement.

Technical implications

BrowserGym's architecture represents a significant advancement in web agent research, providing standardized development environments and robust experimental frameworks. The system's success with various language models, particularly demonstrated by Claude 3.5 Sonnet's performance, validates its approach to web automation.

The framework serves as a foundation for rapid prototyping, consistent evaluation, and reproducible experimentation in web agent development. As the field evolves, BrowserGym's architectural decisions will likely influence future web automation frameworks, making it a crucial tool in advancing AI-driven automation technology.
